Jet engines :-

Jet engines are internal combustion engines discharging hot exhaust gases at high velocity that generate thrust. Unlike the internal combustion engines in automobiles & trucks which convert the up & down movement of the piston to rotary movement of crankshaft, jet engines simply produces power by sucking air at the front side & discharging it at the back side.

Types of jet engines/gas turbines :-

Turbojet engines :-

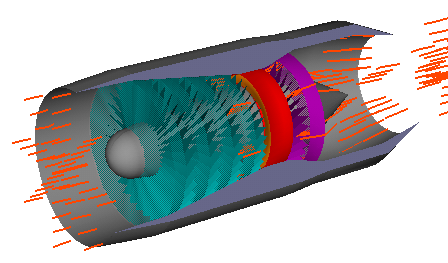

Animation of working of a jet engine. Also you could see that air is flowing faster while leaving the nozzle than while entering.

• These were the first jet engines.
• The fans in the front does the work of compressor. The compressed air is then forced into the combustion chamber.
• As the air is already at high pressure and high temperature, fuel is injected into it. Combustion takes place into the chamber & high amount of exhaust gases are produced.
• These hot expanding gases are then made to flow through turbine which causes the blade to rotate. The turning of turbine also helps to run the compressor as they are connected to the same drive shaft.
• The discharged gases are then allowed to exit through nozzle at high speed which produces thrust & propels the aircraft.

For detailed explanation of a jet engine’s parts, their functions & its working, read one of my previous articles – How do jet engines work ?

---

Turbofan engines :-

Animation showing the air bypassing the engine & its working !

• A turbofan engine is a engine very similar to the jet engine. Like the turbojet, it uses the same gas generator core i.e compressor, combustor, turbine, to produce thrust & turbine is used to run the compressor as well as the fan.
• Turbofans differ from the turbojets in the way they have an additional component – a fan.
  The fan sucks in air &  then further gets compressed & combustion takes place in the burner.
• As you can see in the animation, instead of burning the whole fresh charge, only some part of it is used for combustion & the rest of the air just bypasses (goes around) the engine. The air that goes around the engine has a slight more velocity than the free stream.
• So a turbofan gets some of its thrust from the core and some of its thrust from the fan. The ratio of the air that goes around the engine to the air that goes through the core is called the bypass ratio.
  If the fuel flow rate is same for the turbojet & turbofan engine, the turbofan will generate more thrust because the flow of discharged gases gets accelerated by the bypassed air.
• This means that turbofan engines are more fuel efficient than turbojets.

Turboprop engines :-

Animation showing flowing of air & working of turboprop engine.

• Many low speed transport & small aircrafts use turboprop engines. Turboprop engines use a gas turbine core to turn the propeller.
• The core is similar to the turbojet or turbofan engine as discussed above.
• The difference is instead of expanding all the gases through the nozzle to produce thrust, most of the energy is used to drive the turbine. The turbine then turns the drive shaft which rotates the propeller.
• The exhaust velocity of a turboprop is low and contributes little thrust because most of the energy of the core exhaust has gone into turning the drive shaft.

Ramjets :-

Operation of a ramjet !

• Ramjets are very different type of jet engines from design point of view.
• The front side of a ramjet has a conical part which compresses the intake air.
• At the exit of the inlet, the air is at a much higher pressure than free stream conditions.Fuel is injected for combustion & produces thrust by expelling the hot gases through the nozzle.
• These types of engines have no moving parts yet they are able to achieve speed of Mach 5 (5 times the speed of sound).
• These engines don’t develop ant static thrust; hence a ramjet vehicle need some type of assisted takeoff such as another aircraft.
• Ramjets are mainly used in guided missile systems.

You might like to know about The Top 10 Airplanes in the World !

Scramjets :-

Scramjet engine operation. source:- wikipedia.org

• The name “scramjet” comes from “Supersonic Combusting ramjet” !
• Like a ramjet, they consist of an inlet, a combustor, and a nozzle. The primary difference between ramjets and scramjets is that scramjets do not slow the oncoming airflow to subsonic speeds for combustion, they use supersonic combustion instead.
• Scramjets can operate at speeds above Mach 6 where traditional ramjets are too inefficient.
